Ram Forming Machines

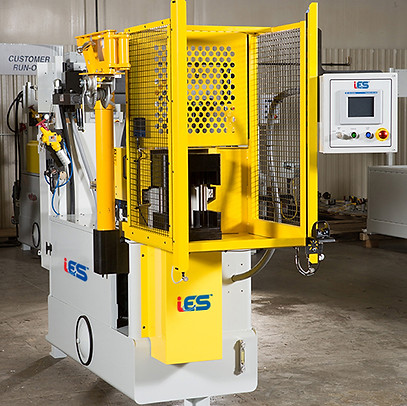

RB80 RF Machine

RB80 RF Tube Endforming Machine



Capacity:

- Tube diameter up to 80mm (3.1")

- Maximum wall thickness is 2mm (0.079")

- Stroke length is 150mm (6.0")



Reference Footprint:

- 66cm (26") W x 190cm (75") L x 183cm (72") H



Options:

- Air or water cooled heat exchanger

- Automatic tooling lubrication

- Flood coolant

- Multiple head configuration

- Enhanced digital control system

- 300mm (12") stroke length

- 457mm (18") stroke length

RB150 RF Tube Endforming Machine



Capacity:

- Tube diameter up to 150mm (6")

- Maximum wall thickness is 2mm (0.079")

- Stoke length is 150mm (6")



Reference Footprint:

- 91cm (36") W x 190cm (75") L x 183cm (72") H



Options:

- Air or water cooled heat exchanger

- Automatic tooling lubrication

- Flood coolant

- Multiple head configuration

- Enhanced digital control system

- 300mm (12") stroke length

- 457mm (18") stroke length

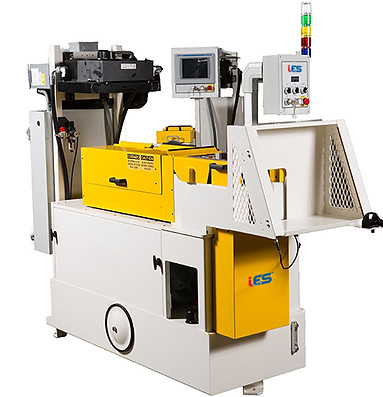

RB150 RF Machine

RB80 RFXT Wide Vise Ram Forming Machine



Capacity:

- Tube diameter up to 80mm (3.1")

- Maximum wall thickness is 2mm (0.079")

- Stroke length is 150mm (6.0")



Reference Footprint:

- 66cm (26") W x 190cm (75") L x 183cm (72") H



Options:

- Air or water cooled heat exchanger

- Automatic tooling lubrication

- Flood coolant

- Multiple head configuration

- Enhanced digital control system

- 300mm (12") stroke length

- 457mm (18") stroke length

RB80 RFXT Machine

RB80 RFXT MH3 Multi-hit Wide Vise Ram Forming Machine



Capacity:

- Tube diameter up to 80mm (3.1")

- Maximum wall thickness is 2mm (0.079")

- Stroke length is 177mm (7.0")

- Multiple hit (2 or 3) horizontal ram nose slide configuration



Reference Footprint:

- 152cm (60") W x 190cm (75") L x 190cm (75") H



Options:

- Air or water cooled heat exchanger

- Spray mist coolant

- Enhanced digital control system

- Light curtain safety cage

RB80 RFXT MH3 Machine
